Principle
※ It is well known that vacuum drying is to put raw material to the state of vacuum for heating and drying. If use vacuum to take air and humidity out, the dry speed will be faster
Application
※ It is suitable for drying heat sensitive materials that can decompose and polymerize and metamorphose at high temperature. It is wide used in pharmaceutical, chemical, foodstuff and electronic industries.
Technical parameters
| Specification/name | YZG-600 | YZG-800 | YZG-1000 | YZG-1400 | FZG-15 |
| inside size of chamber(mm) | φ600×976 | φ800×1247 | φ1000×1527 | φ1400×2054 | φ1500×1220×1400 |
| cuter size of chamber(mm) | 1135×810×1020 | 1700×1045×1335 | 1693×1190×1500 | 2386×1657×1920 | 2060×1513×1924 |
| layers of baking shelf | 4 | 4 | 6 | 8 | 8 |
| layer of baking shelf(mm) | 81 | 82 | 102 | 102 | 122 |
| size of baking tray(mm) | 310×600×45 | 460×640×45 | 460×640×45 | 460×640×45 | 460×640×45 |
| number of baking tray | 4 | 8 | 12 | 32 | 32 |
| permitted pressureinside the pipe of baking shelf(Mpa) | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 |
| temperature inside chamber(℃) | 35-150 | 35-150 | 35-1 50 | 35-150 | 35-150 |
| vacuum in idle inside chamber(Mpa) | -0.1 | -0.1 | 0.1 | 0.1 | -0 1 |
| under the condition of -0.1Mpa and 110℃ evaporation rate of water, kg/m2hr. | 7.2 | 7.2 | 7.2 | 7.2 | 7 2 |
| when condenser is used. model and power of vacuum pump(kw) |
2X-15A 2KW |
2X-30A 3KW |
2X-30A 3KW |
2X-70A 5.5KW |
2X-70A 5.5KW |
| when condenser is not used.model and power of vacuum pump(kw) | SZ-0.5 1.5kw |
SZ-1 2.2KW |
SZ-1 2.2KW |
SZ-2 4KW |
SZ-2 4KW |
| weight of frying chamber(kg) | 250 | 600 | 800 | 1400 | 2100 |
Feature
※ Under the condition of vacuum, the boiling point of raw material will decrease and make the pushing force become greater. Therefore for a centain amount of heat radiation, he conducting area of evaporator can be saved.
※ The heat source for operation of evaporation may be low pressure steam or surplus heat steam.
※ The heat loss of evaporator is less.
※ Before drying, the treatment of disinfection may be carried out. During the period of drying, there is no impurity material mixing. It is in conformity with the requirement of GMP.
※ It belongs to static drier. So the shape of raw material to be dried can not be destroyed.
※ If use condensate, the solvent in raw material can be recovered.

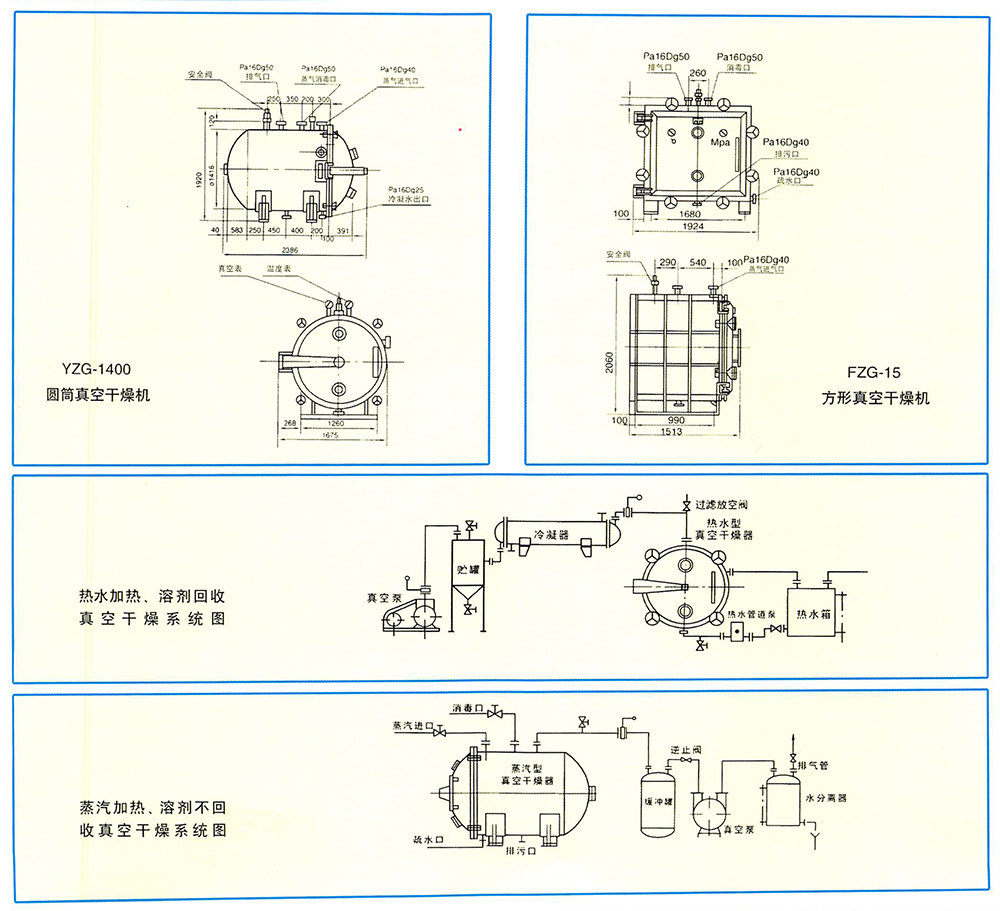

結構示意圖
