Descriptions
※ On the basis of MC- I type, the square type pulse dust filter with cloth bag MC-II is the amended and improved one. In addition to the advantages that type is high in the dust removing efficiency, big in the air capacity, stable in the performance, easy in operation and maintenance, MC-II has the better result than MC-I. Such as: it is not easy to build up the powder and its application is wide and so on. The device is widely used for the ventilation, dust removing and powder restoration in the grain, feed, metallurgical, chemical building material, medical and other industries.

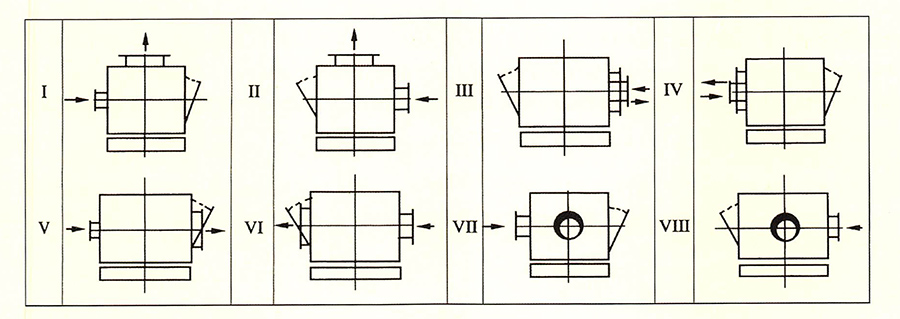

Sketch of oven
Technical parameters
| parameters/model | MC24 | MC36 | MC48 | MC60 | MC72 | MC84 | MC96 | MC120 | ||
| filtering area(m2) | 18 | 27 | 36 | 45 | 54 | 63 | 72 | 90 | ||
| filtering number | 24 | 36 | 48 | 60 | 72 | 84 | 96 | 120 | ||
| filtering air speed(m/min) | 2-4 | 2-4 | 2-4 | 2-4 | 2-4 | 2-4 | 2-4 | 2-4 | ||
| filtering air volume(m2/h) | 2160-4300 | 3250-6480 | 4320-8630 | 5400-10800 | 6450-12900 | 7550-15100 | 8650-17300 | 10800-2080 | ||
| Max.overall dimension (mm) |
long | 1025 | 1425 | 1820 | 2225 | 2625 | 3025 | 3585 | 4385 | |
| wide*high | 1678*3660 | |||||||||
| dust remover | pulse valve number | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | |
| compressed air consumption （m2/min） |
0.07-0.30 | 0.11-0.40 | 0.15-0.50 | 0.18-0.60 | 0.22-0.60 | 0.25-0.90 | 0.29-0.90 | 0.37-0.90 | ||
| compressed air pressure (Mpa) | 0.5-0.8 | |||||||||
